Waterproof mastic Tape/use with pvc tape for cable sealing
Features and Application
*Designed for quick and gap-free insulation support.
*Good form to irregular surface
*Use with PVC electrical tape bracket to install cables and provide professional waterproof sealing effect for pipes.
*Weather resistant/high temperature resistant/chemical resistant self fusing tape, stronger than other silicone tapes;
*For telecommunication and electrical power industry.
Installation steps:
Step 1.Wipe off the dusts on the splice area before wrapping.
Step 2.Remove the liner and stretch the tape to 1 to 2 times of its original length, apply the tape in 50%-lapped with mastic side toward area to the wrapped. Stretching the tape to 4 times of its original length is not recommended.
Step 3.Make sure there is 30mm to 50mm wrapping tape above both sides of the splice area.
Step 4 After ZK2066 mastic tape is applied, over wrapping PVC insulation tape is recommended, apply 3 layers PVC insulation tape in a 50% overlapping with no tension. Make sure not to overstretch the PVC tape during installation.
| Product | Model No. | Normal Specification |
| water proof and irregular surface sealing Gooey/waterproof mastic Tape for cable sealing | ZK2066 | 63mm*2.5mm*0.6m |
| Technical Parameters |
| Performance | Typical data | Test Method |
| Installation temperature | 0-32℃ | ASTM D4388 |
| Water absorption | <0.07% | ASTM D4325 |
| volume resistivity | 1014Ω | ASTM D4325 |
| Ozone aging | Pass | ASTM D4388 |
| UV aging | Pass | ASTM D4388 |
| Product name | water proof and irregular surface sealing Gooey/waterproof mastic Tape for cable sealing |
| Material | Butyl rubber Mastic |
| Adhesive Side | Non Adhesive |
| Color | Black |
| Adhesive Type | Self Fusing |
| Feature | Corrosion-proof and has high resistance to heat, harsh solvents, chemicals, UV;superior water and air tight sealing performance |
| Size | Customized |
| Application | Waterproof |
| Packaging | shrinked for each roll and then packing by paper carton or as your request |
| Advantage | High quality/Best service/Popular design/fast delivery time/Cheaper price |

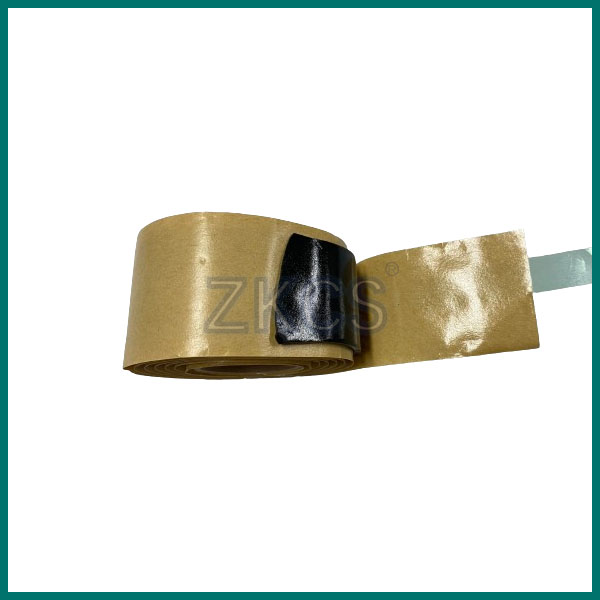

Product pictures for reference.
For your information:
| Trade terms | FOB, EXW, CIF, |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 500 |
| Supply capability | 300000 pieces per month |
| Lead time | usually 10 working days |
| Shipment | Express, air, sea |
| Port | Shenzhen |
| Sample availability | Yes |
| Sample time | usually 3-5 days |
| Packaging | Normal: Plastic bag & Carton & Pallet
Special: Customized packing |
